drylin® T - Low-profile guide

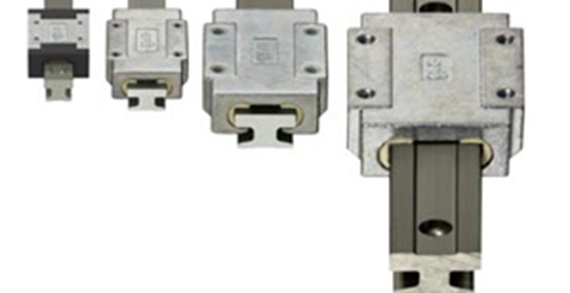

drylin® T low profile linear guide system - linear systems in compact design, four installation sizes, lubrication-free and maintenance-free

Maintenance-free, dry operation

Robust sliding carriage, not adjustable

Carriage body made of zinc

Wear resistant and interchangeable gliding elements made of iglidur® J (or iglidur® J200 for TW-04-07)

Hard-anodised aluminium rail

Low installation height

Corrosion-free

Hole pitches symmetrical C5 = C6

Dimensioned identical to low profile recirculating ball guide systems

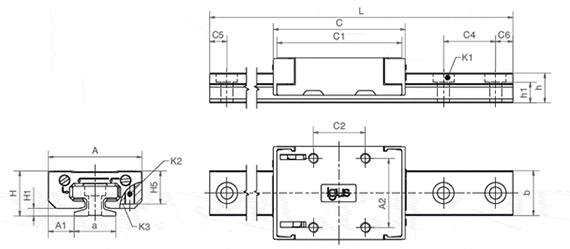

drylin® T low profile linear guide as adjustable version, size 12

drylin® T low profile linear guide as adjustable version of size 12 in 8 levels

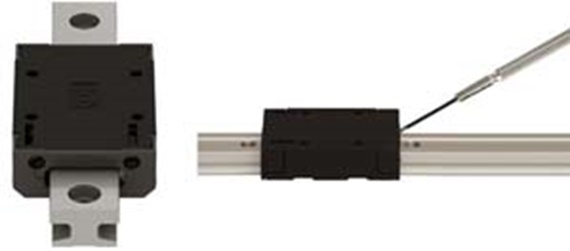

In size 12, the bearing clearance in miniature carriages TWE-04-12 can be easily adjusted with a screwdriver.

Adjustable bearing clearance

Lubricant- and maintance-free

High corrosion resistance through E-coating

Quiet running

Compact design

Ordering of a complete system

Configuration in few steps:

1. Selection of the installation size
2. Selection of the number of carriages per rail
3. Entry of the rail length in mm
4. Selection of the floating bearing option

Hint:

Detailed information can be found in the drawings and tables above, as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

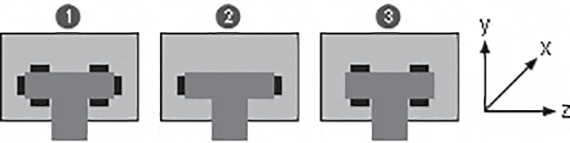

no floating bearing

Floating bearing in y-direction

Floating bearing in z-direction

drylin® T - Technical data

drylin® T - Design rules

drylin® T - System design

drylin® TK-04 – complete set

Step 1

Select the installation size of the carriage.

Continue

Back

T low profile guide rails

a [mm]:

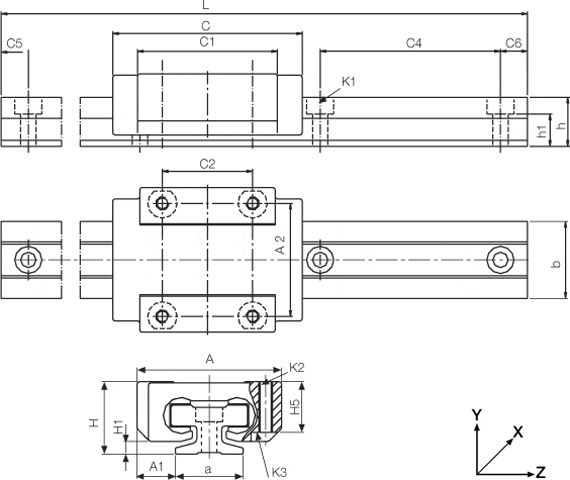

DryLin® T low-profile guide rails

Order no.		Weight	L max.	a -0,2	b	C4	C5 min.	C5 max.	C6 min.	C6 max.	h	h1	K1*	ly	lz	Wby	Wbz	Price / m
		[kg/m]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]				[mm⁴]	[mm⁴]	[mm³]	[mm³]
TS-04-07-UNGEBOHRT																		1.064.228 VND
TS-04-09-UNGEBOHRT																		1.097.250 VND
TS-04-12-UNGEBOHRT																		1.192.554 VND
TS-04-15-UNGEBOHRT																		1.280.334 VND
TS-04-07	NEW	0,08	2000	7	8	15	5	12	5	12	5,5	3,7	M2	131	90	32	29	1.182.522 VND
TS-04-09		0,11	2000	9	9,6	20	5	14,5	5	14,5	6,3	4,6	M2	252	169	52	49	1.218.888 VND
TS-04-12		0,2	2000	12	13	25	5	17	5	17	8,6	5,9	M3	856	574	132	120	1.325.060 VND
TS-04-15		0,33	3000	15	17	40	10	29,5	10	29,5	10,8	7	M3	2420	1410	285	239	1.422.454 VND

Thêm về phần đã lựa chọn:

3D CAD

Yêu cầu mẫu

PDF

Yêu cầu báo giá

myCatalog

*For screw DIN 912
For unbored rails please indicate "Unbored" in the remark.

T low profile carriage

H [mm]:

DryLin® T low-profile carriage

Order no.		Weight	H ±0,2	A ±0,2	C ±0,3	A1 ±0,35	A2	C1	C2	H1 ±0,35	H5	K2**	Tightening torque max.	K3*
		[kg]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]		[Nm]
TW-04-07	NEW	0,008	8	17	23	5	12	21	8	1,5	0	M2	0		324.786 VND
TW-04-07-LLZ		0,008	8	17	23	5	12	21	8	1,5	0	M2	0		324.786 VND
TW-04-09		0,017	10	20	29	5,5	15	18	13	1,7	7,2	M2	0,25	(M2)	428.032 VND
TW-04-09-LLY		0,017	10	20	29	5,5	15	18	13	1,7	7,2	M2	0,25	(M2)	427.948 VND
TW-04-09-LLZ		0,017	10	20	29	5,5	15	18	13	1,7	7,2	M2	0,25	(M2)	427.948 VND
TW-04-12-LLY		0,034	13	27	34	7,5	20	22	15	2,2	9,5	M3	0,5	M2 (M3)	521.079 VND
TW-04-12-LLZ		0,034	13	27	34	7,5	20	22	15	2,2	9,5	M3	0,5	M2 (M3)	521.079 VND
TW-04-12		0,034	13	27	34	7,5	20	22	15	2,2	9,5	M3	0,5	M2 (M3)	520.828 VND
TW-04-15		0,061	16	32	42	8,5	25	31	20	2,8	11	M3	0,5	M2 (M3)	642.884 VND
TW-04-15-LLY		0,061	16	32	42	8,5	25	31	20	2,8	11	M3	0,5	M2 (M3)	642.926 VND
TW-04-15-LLZ		0,061	16	32	42	8,5	25	31	20	2,8	11	M3	0,5	M2 (M3)	642.926 VND
