Servo cables

The chainflex® servo cables for energy chains are available with or without an inner jacket. Depending on the type, they are flame-retardant, coolant-resistant, oil-resistant and flexible at low temperatures, whereby twistable cables are also possible. The servo cables are available for all well-known drive manufacturers. Tested in the igus® lab with  millions of cycles in e-chains®, they provide a guaranteed safety against failure.

  • Bending radii up to 6,8 x d
  • Total shield with optimised braiding angle
  • Jacket materials: PVC, iguPUR, PUR or TPE

Cable price-check

Cable price-check

The best price-cable ratio. With the igus® price check, the right cable for your needs can be found very quickly.
FAQs

FAQs

Frequently asked questions about igus® chainflex® and readycable®
Ready for sending within 36 hours

Ready for sending within 36 hours

chainflex cables - ready for shipment within 36 hours and with up to 36 months guarantee!
Hạng mục
Dây cáp dùng cho chuyển động
Cáp sẵn sàng để kết nối
Dây cáp rời
Cáp điều khiển
Cáp dữ liệu
Cáp motor
Cáp bus
Cáp hệ thống đo lường
Cáp servo
Cáp đồng trục
Cáp sợi quang (FOC)
Cáp đặc biệt
Dây cáp robot
Ống nén khí
Bộ lọc
Yêu cầu cốt lõi
Hiển thị thông tin chi tiết
Cable structure
Material
Electrical information
Requirements
Drive technology system
List
Tile

Số lượng sản phẩm: 9

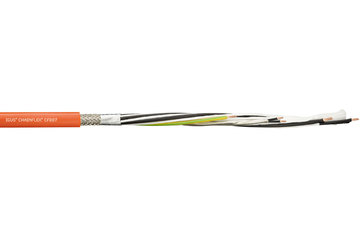

chainflex® servo cable CF887
chainflex® servo cable CF887
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Oil resistance: No oil resistance
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.1.1
từ 179.322 VND/m
7 mặt hàng, trong đó sẵn sàng để vận chuyển:
2 trong vòng 24 - 48 giờ
Đến trang sản phẩm
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

chainflex® servo cable CF210.UL
chainflex® servo cable CF210.UL
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 4.2.2.1
từ 179.740 VND/m
11 mặt hàng, trong đó sẵn sàng để vận chuyển:
11 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.02324 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10989 and 2570, 1.000 V, 80 °C

chainflex® hybrid servo cable CF220.UL.H
chainflex® hybrid servo cable CF220.UL.H
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 4.2.2.1
từ 382.052 VND/m
10 mặt hàng, trong đó sẵn sàng để vận chuyển:
5 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2.  Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10989 and 2570, 1.000 V, 80 °C

chainflex® servo cable CF21.UL
chainflex® servo cable CF21.UL
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • Silicone-free
  • Flame retardant
  • Overall shield
  • CFRIP®
  • chainflex® class: 5.5.2.1
từ 396.264 VND/m
16 mặt hàng, trong đó sẵn sàng để vận chuyển:
13 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

chainflex® servo cable CF897
chainflex® servo cable CF897
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Silicone-free
  • Flame retardant
  • Overall shield
  • chainflex® class: 3.1.3.1
từ 259.160 VND/m
4 mặt hàng, trong đó sẵn sàng để vận chuyển:
2 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 21223, 1.000 V, 80 °C

chainflex® servo cable CF270.UL.D
chainflex® servo cable CF270.UL.D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1
từ 171.798 VND/m
35 mặt hàng, trong đó sẵn sàng để vận chuyển:
30 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10989 and 21223, 1.000 V, 80 °C

chainflex® hybrid servo cable CF280.UL.H
chainflex® hybrid servo cable CF280.UL.H
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1
từ 432.630 VND/m
26 mặt hàng, trong đó sẵn sàng để vận chuyển:
6 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10989 and 21223, 1.000 V, 80 °C

chainflex® servo cable CF27.D
chainflex® servo cable CF27.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1
từ 300.124 VND/m
25 mặt hàng, trong đó sẵn sàng để vận chuyển:
24 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10492 and 20234, 1.000 V, 80 °C

chainflex® servo cable CF29.D
chainflex® servo cable CF29.D
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • Halogen-free
  • Silicone-free
  • Overall shield
  • PVC-free
  • chainflex® class: 7.6.4.1
từ 676.742 VND/m
3 mặt hàng, trong đó sẵn sàng để vận chuyển:
3 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance Medium Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization
