Control cables

The chainflex® control cables are available for the most varied mechanical requirements in various approvals and conformities. Depending on the type of control cable, they are torsion-resistant, suitable for narrow radii or very low temperatures, UV-resistant, flame-retardant and halogen-free. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.

  • Bending radii up to 4xd
  • Shielded / Unshielded
  • Jacket materials: PVC, iguPUR, PUR or TPE

Cable price-check

Cable price-check

The best price-cable ratio. With the igus® price check, the right cable for your needs can be found very quickly.
FAQs

FAQs

Frequently asked questions about igus® chainflex® and readycable®
Ready for sending within 36 hours

Ready for sending within 36 hours

chainflex cables - ready for shipment within 36 hours and with up to 36 months guarantee!
Hạng mục
Dây cáp dùng cho chuyển động
Cáp sẵn sàng để kết nối
Dây cáp rời
Cáp điều khiển
Cáp dữ liệu
Cáp motor
Cáp bus
Cáp hệ thống đo lường
Cáp servo
Cáp đồng trục
Cáp sợi quang (FOC)
Cáp đặc biệt
Dây cáp robot
Ống nén khí
Bộ lọc
Yêu cầu cốt lõi
Hiển thị thông tin chi tiết
Cable structure
Material
Electrical information
Requirements
List
Tile

Số lượng sản phẩm: 23

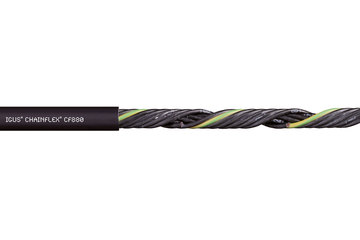

chainflex® control cable CF880
chainflex® control cable CF880
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1
từ 20.482 VND/m
37 mặt hàng, trong đó sẵn sàng để vận chuyển:
20 trong vòng 24 - 48 giờ
Đến trang sản phẩm
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01560 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

chainflex® control cable CF881
chainflex® control cable CF881
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1
từ 43.054 VND/m
36 mặt hàng, trong đó sẵn sàng để vận chuyển:
5 trong vòng 24 - 48 giờ
Đến trang sản phẩm
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01560 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

chainflex® control cable CF130.UL
chainflex® control cable CF130.UL
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • CFRIP®
  • chainflex® class: 4.4.1.2
từ 28.424 VND/m
55 mặt hàng, trong đó sẵn sàng để vận chuyển:
26 trong vòng 24 - 48 giờ
Đến trang sản phẩm
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1

chainflex® control cable CF140.UL
chainflex® control cable CF140.UL
  • Requirements: For medium duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • CFRIP®
  • chainflex® class: 4.4.1.1
từ 87.362 VND/m
32 mặt hàng, trong đó sẵn sàng để vận chuyển:
7 trong vòng 24 - 48 giờ
Đến trang sản phẩm
Flame retardant According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame,<br />FT4 TC-ER UL 1277, WTTC UL 2277, MTW UL W63 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1

chainflex® control cable CF5
chainflex® control cable CF5
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.2
từ 48.488 VND/m
43 mặt hàng, trong đó sẵn sàng để vận chuyển:
16 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF130.15.07.UL, tested by IPA according to standard 14644-1

chainflex® control cable CF890
chainflex® control cable CF890
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 3.1.3.1
từ 30.096 VND/m
38 mặt hàng, trong đó sẵn sàng để vận chuyển:
4 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details EAC Certified to no. TC RU C-DE. ME77.B.01560 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

chainflex® control cable CF6
chainflex® control cable CF6
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.1
từ 144.210 VND/m
34 mặt hàng, trong đó sẵn sàng để vận chuyển:
12 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1.

chainflex® control cable CF891
chainflex® control cable CF891
  • Requirements: For flexing applications
  • Outer jacket: iguPUR
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 3.1.3.1
từ 53.504 VND/m
34 mặt hàng, trong đó sẵn sàng để vận chuyển:
32 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details EAC Certified to no. TC RU C-DE. ME77.B.01560 CTP Certified to no. C-DE. PB49.B.00449 Lead free Following 2011/65/EU (RoHS-II)

chainflex® control cable CF77.UL.D
chainflex® control cable CF77.UL.D
  • Requirements: For twistable applications
  • Outer jacket: PUR
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 5.1.3.3
từ 80.674 VND/m
54 mặt hàng, trong đó sẵn sàng để vận chuyển:
17 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 50267-2-1 UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

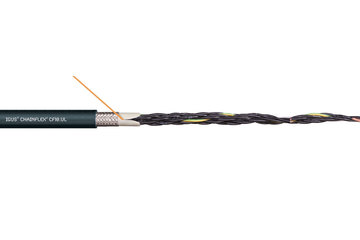

chainflex® control cable CF78.UL
chainflex® control cable CF78.UL
  • Requirements: For heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • CFRIP®
  • chainflex® class: 5.5.3.1
từ 178.068 VND/m
36 mặt hàng, trong đó sẵn sàng để vận chuyển:
2 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 50267-2-1 UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF77.UL.05.12.D, tested by IPA according to standard 14644-1

chainflex® control cable CF2
chainflex® control cable CF2
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • chainflex® class: 6.5.3.1
từ 218.196 VND/m
12 mặt hàng, trong đó sẵn sàng để vận chuyển:
11 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance High Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1

chainflex® control cable CF9
chainflex® control cable CF9
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 7.6.4.2
từ 73.568 VND/m
55 mặt hàng, trong đó sẵn sàng để vận chuyển:
25 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified to no. TC RU C-DE. ME77.B.01254 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 2, material/cable tested by IPA according to ISO standard 14644-1.

chainflex® control cable CF9.UL
chainflex® control cable CF9.UL
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.2
từ 107.844 VND/m
42 mặt hàng, trong đó sẵn sàng để vận chuyển:
38 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1

chainflex® control cable CF10
chainflex® control cable CF10
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Overall shield
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 7.6.4.1
từ 184.756 VND/m
37 mặt hàng, trong đó sẵn sàng để vận chuyển:
4 trong vòng 24 - 48 giờ
Đến trang sản phẩm
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified to no. TC RU C-DE. ME77.B.01254 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

chainflex® control cable CF10.UL
chainflex® control cable CF10.UL
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Coolant resistant
  • Low-temperature-flexible
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV-resistant
  • PVC-free
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • CFRIP®
  • chainflex® class: 6.6.4.1
từ 221.958 VND/m
33 mặt hàng, trong đó sẵn sàng để vận chuyển:
27 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). UL/CSA AWM see data sheet for details NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified to no. TC RU C-DE. ME77.B.01254 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1
