Spherical insert bearing, JEM, narrow, mm, igubal®

  • Dimensional series E following DIN ISO 12240
  • Material: iglidur® J
  • For various metal bearing housings
  • Low wear against different shaft materials
  • Low coefficient of friction during dry operation
  • Vibration-dampening
  • Good chemical resistance
  • Best material to use with soft shaft materials
  • Low moisture absorption

Không chắc có vừa hay không?

Expert system
Download CAD files
Free sample request
Mô tả sản phẩm
igubal® spherical insert bearing JEM

Each iglidur® material has a number of special specifications that make it suitable for specific applications and requirements.
The iglidur® J material offers particularly low moisture absorption.

Material properties
  • Low wear against different shaft materials
  • Low coefficient of friction during dry operation
  • Vibration-dampening
  • Good chemical resistance
  • Best material to use with soft shaft materials
  • Low moisture absorption

Typical applications
  • Plant construction
  • Model making
  • Furniture/Industrial design
  • You will find plenty of additional application areas at our Industry solutions

When to use it?
  • If you need maintenance-free material
  • If high compressive strength is required
  • If high flexibility is required
When not to use it?
  • If temperatures are higher than +90 °C
  • When dimensions above 50mm are required
  • If rotation speeds of more than 0.5 m/s are to be achieved
Use our filter options to find the suitable product


Tolerances
Maintenance-free igubal® spherical bearings are designed with a tolerance in the inner diameter according to E10. The shaft tolerance should be between h6 and h9. All values and tolerances according to DIN ISO 2768-m.
Dữ liệu kỹ thuật
Tải xuống

Các giải pháp khác

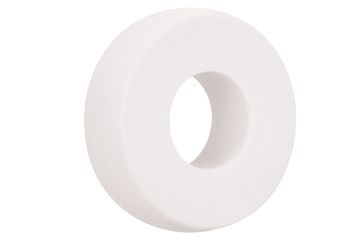

Spherical insert bearing, A180EM, narrow, mm, igubal®
Spherical insert bearing, A180EM, narrow, mm, igubal®

For metal bearing housings, FDA-compliant, dimensional series E

từ 713.108 VND/Pc.
Clip bearing, heavy duty, ECLM-HD, igubal®
Clip bearing, heavy duty, ECLM-HD, igubal®

For high axial and radial loads, dimensional series E

từ 208.206 VND/Pc.
Spherical bearing, KGLI, inch, igubal®
Spherical bearing, KGLI, inch, igubal®

Classic design, easy assembly, dimensional series K

từ 92.754 VND/Pc.
Flange bearings with 2 mounting holes, EFOM, igubal®, spherical ball iglidur® J4V
Flange bearings with 2 mounting holes, EFOM, igubal®, spherical ball iglidur® J4V

Simple assembly, two mounting holes, dimensional series E

từ 213.891 VND/Pc.
Spherical insert bearing, JEM, narrow, mm, igubal®
Spherical insert bearing, JEM, narrow, mm, igubal®

For metal bearing housings, low moisture absorption, dimensional series E

từ 747.677 VND/Pc.
Rod end with female thread, detectable, KBRM CL, spherical ball iglidur® RN248, mm
Rod end with female thread, detectable, KBRM CL, spherical ball iglidur® RN248, mm

Detectable, right-hand thread, dimensional series K, housing B

Theo yêu cầu
Rod end with female thread, detectable, KBLM CL, spherical ball iglidur® RN248, mm
Rod end with female thread, detectable, KBLM CL, spherical ball iglidur® RN248, mm

Detectable, left-hand thread, dimensional series K, housing B

Theo yêu cầu
Rod end with female thread, detectable, EBRM, spherical ball iglidur® RN248, mm
Rod end with female thread, detectable, EBRM, spherical ball iglidur® RN248, mm

Detectable, right-hand thread, dimensional series E, housing B

Theo yêu cầu

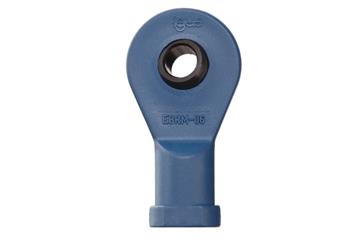

Rod end bearing with female thread, detectable EBLM, spherical ball iglidur® RN248, mm
