Double joints

Double joints and coupling joints made of metal are heavy, often expensive and require extensive maintenance. The more economical alternative: igubal® series double joints and coupling joints. They are made of polymers that bring about weight savings of up to 80% and cost savings of up to 40%. But that is not all. The double joints and coupling joints made of plastic are easier to install and facilitate economic operations. They do not require any lubrication and are maintenance-free.  The igubal® range of double joints and coupling joints is constantly growing. And thanks to a modular system with spherical ball made of various materials and housings of different shapes, you the user are sure to find your ideal solution. Upon request, igus® will also produce special components. The users of igubal® double joints and coupling joints are, as examples, companies in the automotive industry, automation, agricultural engineering, plant engineering and automotive engineering.

Số lượng sản phẩm: 11

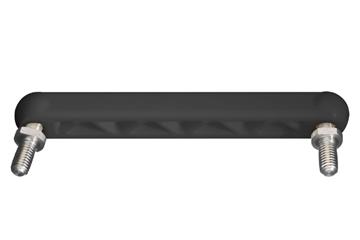

Variable coupling joint, not removable, GPZM, with ball stud, igubal®
  • Injection-moulded part for series applications
  • Socket cup M6
  • Individual centre dimensions and lengths
  • Individual alignment of the bearing position
Variable coupling joint, WDGM-FX, with ball studs, igubal®
  • Socket cup M5, M6, M8 and M10
  • Individual centre dimensions and lengths
  • Individual alignment of the bearing position
  • End pieces with extreme undercut to prevent dirt from entering
Double joint, EGZM, W300, igubal®
  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® W300
  • Maintenance-free dry operation
  • Mechanical joining link between two components
  • Compensation of misalignment errors
  • Corrosion-resistant
  • Double joint turned 90° available upon request
từ 3,98 USD/Pc.
16 mặt hàng, trong đó sẵn sàng để vận chuyển:
16 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
Double joint, EGZM, J4VEM, igubal®
  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J4V
  • Maintenance-free dry operation
  • Mechanical joining link between two components
  • Compensation of misalignment errors
  • Corrosion-resistant
  • Double joint turned 90° available upon request
từ 9,74 USD/Pc.
7 mặt hàng, trong đó sẵn sàng để vận chuyển:
5 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm

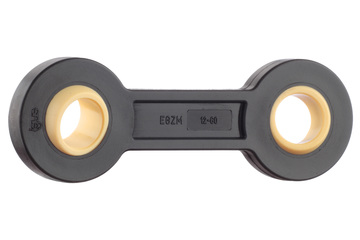

Double joint, EGZM, J, igubal®
  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J
  • Maintenance-free dry operation
  • Mechanical joining link between two components
  • Compensation of misalignment errors
  • Corrosion-resistant
  • Double joint turned 90° available upon request
từ 3,41 USD/Pc.
16 mặt hàng, trong đó sẵn sàng để vận chuyển:
5 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm

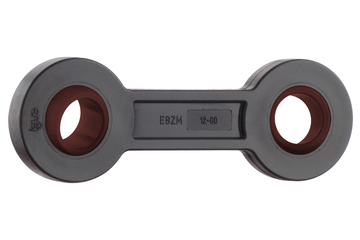

Double joint, EGZM, R, igubal®
  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® R
  • Maintenance-free dry operation
  • Mechanical joining link between two components
  • Compensation of misalignment errors
  • Corrosion-resistant
  • Double joint turned 90° available upon request
từ 10,21 USD/Pc.
16 mặt hàng, trong đó sẵn sàng để vận chuyển:
16 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
Variable double joint, KDGM, W300, igubal®
  • Dimensional series: K, following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® W300
  • Spherical ball diameters 6, 8, 10 and 12 mm
  • Individual centre dimensions and lengths
  • Individual alignment of the bearing position
Theo yêu cầu
14 mặt hàng, trong đó sẵn sàng để vận chuyển:
14 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm

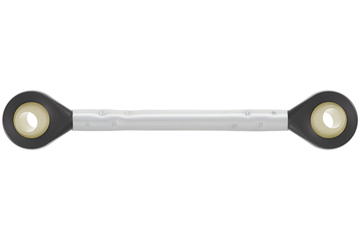

Variable double joint, KDGM, J, igubal®
  • Dimensional series: K, following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J
  • Spherical ball diameters 6, 8, 10 and 12 mm
  • Individual centre dimensions and lengths
  • Individual alignment of the bearing position
Theo yêu cầu
14 mặt hàng, trong đó sẵn sàng để vận chuyển:
14 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm
igubal® variable double joint, KDGM, J4
  • Dimensional series: K, following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J4
  • Ball diameters 6, 8, 10 and 12mm
  • Individual centre dimensions and lengths
  • Individual alignment of the bearing position
Theo yêu cầu
14 mặt hàng, trong đó sẵn sàng để vận chuyển:
14 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm

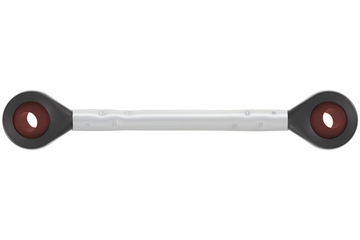

Variable double joint, KDGM, R, igubal®
  • Dimensional series: K, following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® R
  • Spherical ball diameters 6, 8, 10 and 12 mm
  • Individual centre dimensions and lengths
  • Individual alignment of the bearing position
Theo yêu cầu
14 mặt hàng, trong đó sẵn sàng để vận chuyển:
14 trong vòng 10 - 14 ngày làm việc
Đến trang sản phẩm

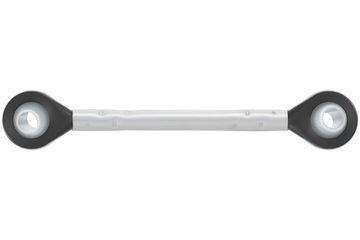

Variable double joint, KDGM, EK, igubal®
  • Dimensional series: K, following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: stainless steel
  • Spherical ball diameters 6, 8, 10 and 12 mm
  • Individual centre dimensions and lengths
  • Individual alignment of the bearing position
